Proxmox Networking Explained: VLANs, Bridges, and vmbr0
Configure Proxmox networking — bridges, VLANs, and VM/container network interfaces using official Proxmox GUI screenshots.
Step 1: Management Network During Install
During Proxmox install, configure the management interface IP, gateway, and DNS.

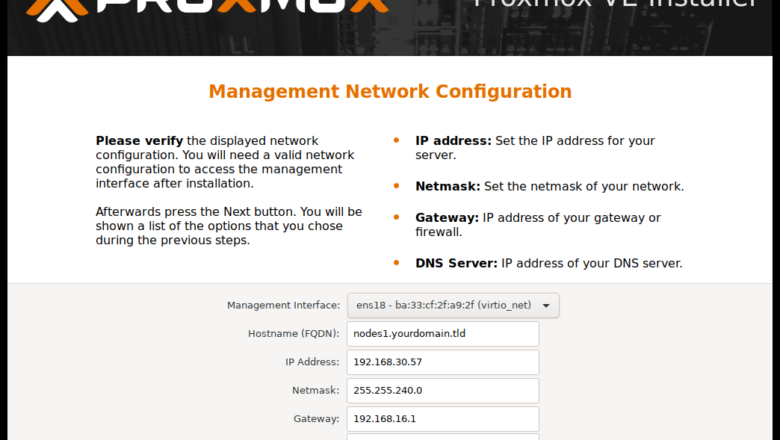

Installer — management network
Step 2: VM Network Configuration
When creating a VM, set bridge (vmbr0), model (VirtIO), and VLAN tag on the Network tab.
Create VM — Network tab
Step 3: LXC Container Network
Configure container network bridge and IP settings on the Create CT wizard.
Create CT — Network tab
VLAN Example (/etc/network/interfaces)
auto vmbr1
iface vmbr1 inet manual
bridge-ports enp3s0.100
bridge-stp off
Assign VLAN Tag on VM Network tab when using VLAN-aware bridges.
Image credits: Screenshots are from the official
