Proxmox Cluster Setup: Multi-Node Configuration Guide

Set up a multi-node Proxmox cluster for centralized management, live migration, and high availability.

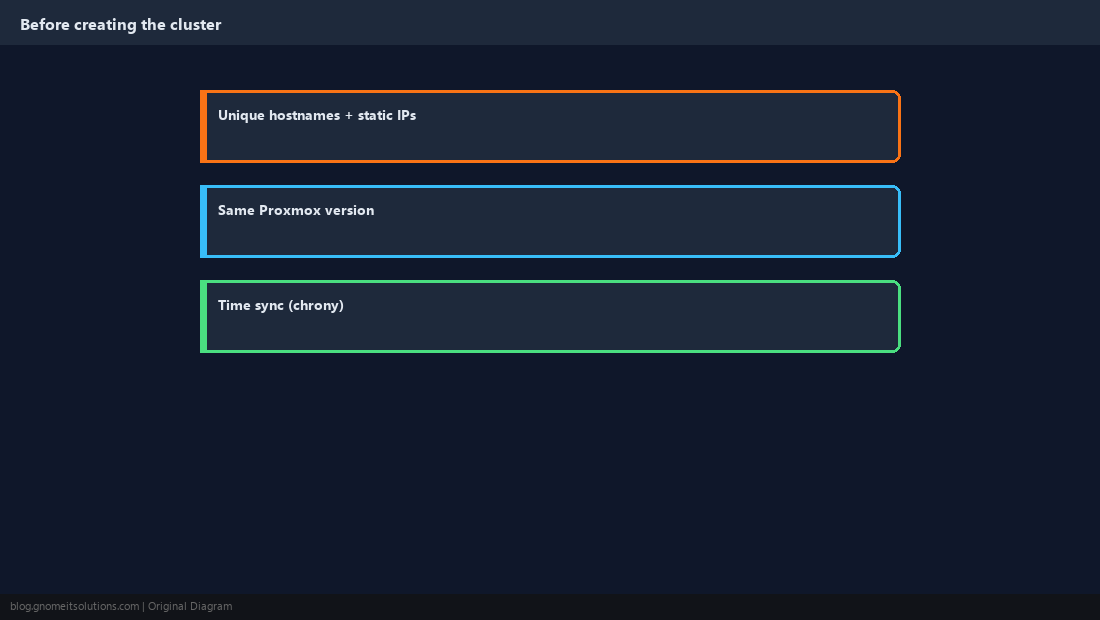

Requirements

• 2+ Proxmox nodes with static IPs
• Ports 8006, 5404-5405 open between nodes
• Unique hostnames per node

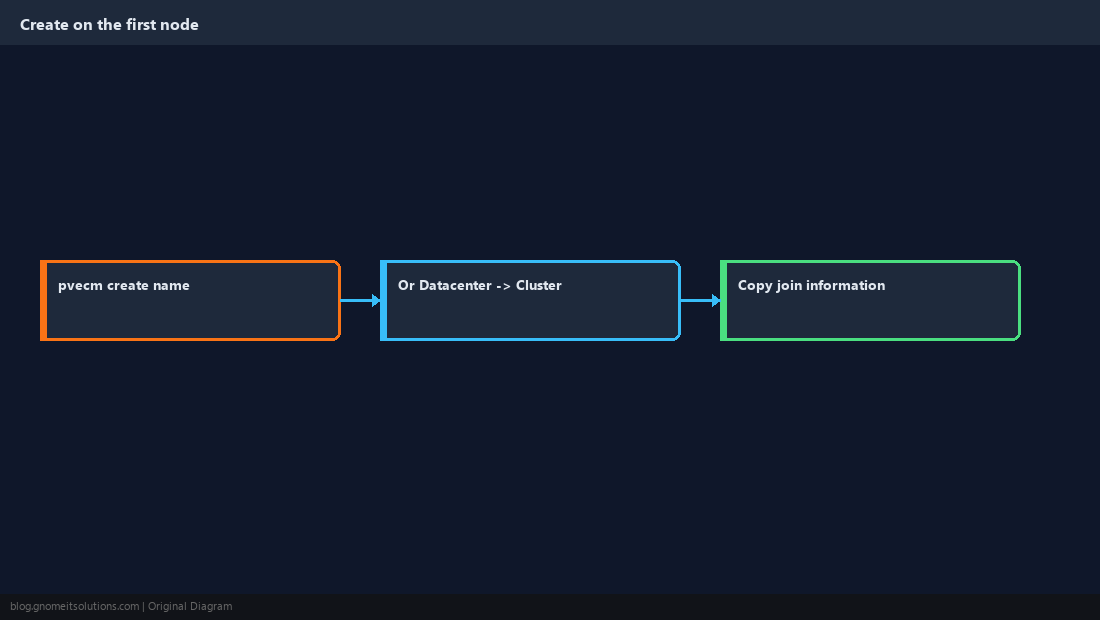

Step 1: Create a New Cluster

Datacenter → Cluster → Create. Enter cluster name and link IP.

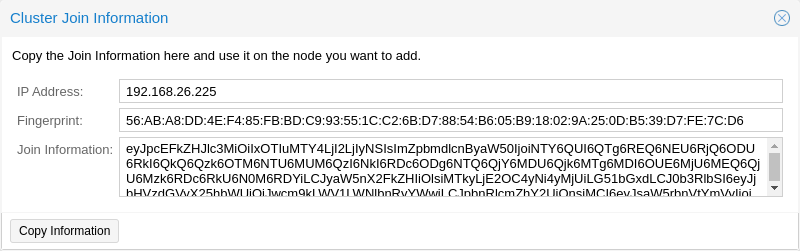

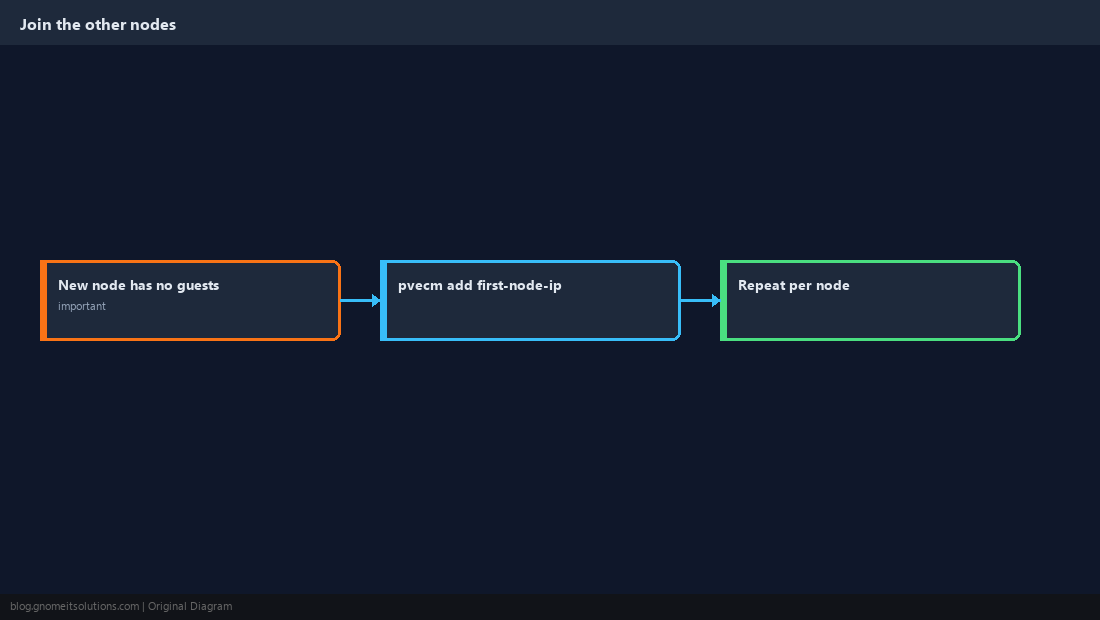

Step 2: Join Cluster — Enter Information

On additional nodes: Cluster → Join. Enter peer IP and credentials.

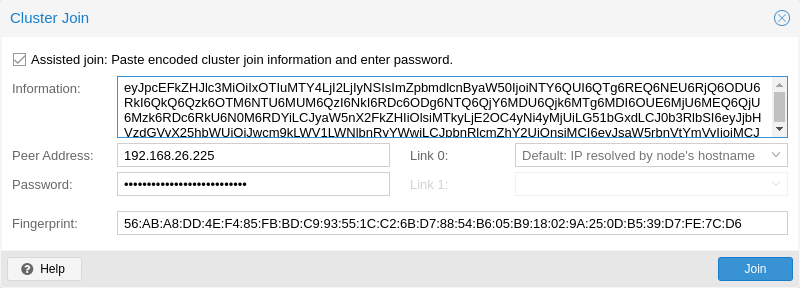

Step 3: Complete Cluster Join

Confirm fingerprint and join the node to the existing cluster.

CLI Alternative

pvecm create pve-cluster
pvecm add 192.168.1.51

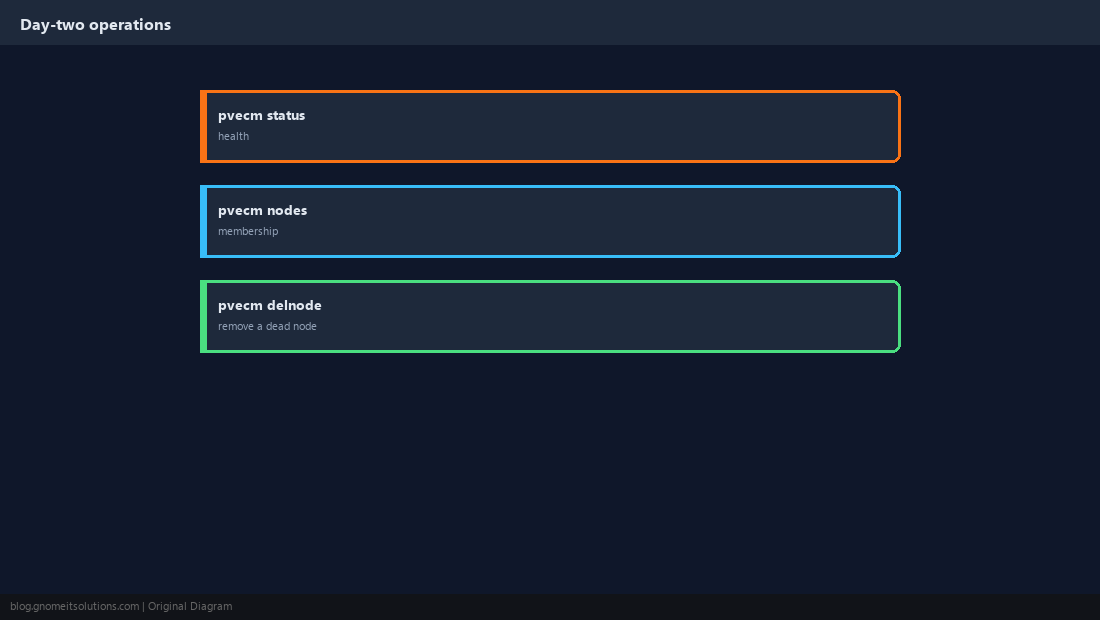

pvecm status

Best Practices

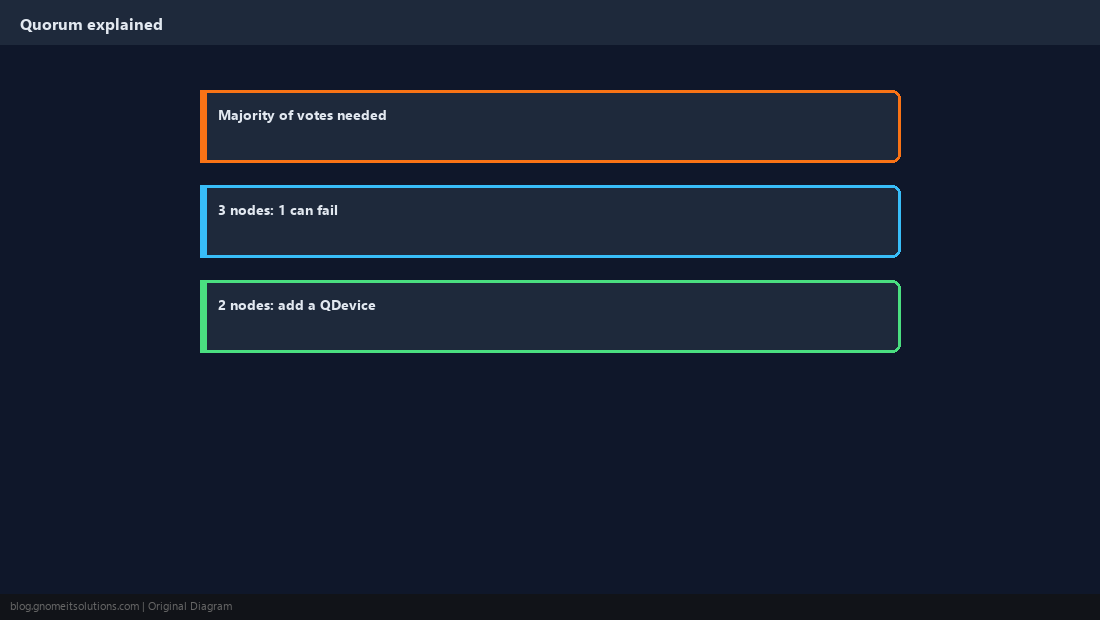

• Use 3+ nodes for reliable quorum
• Use shared storage for HA migration

Image credits: Screenshots are from the official
Proxmox VE documentation
(Proxmox GmbH), used for educational purposes.
