Two enterprise hypervisors compared and installed from scratch: Proxmox VE (open-source KVM + LXC) and VMware ESXi (commercial vSphere hypervisor). This guide walks through bare-metal installation, web UI access, first VM creation, and a feature comparison.

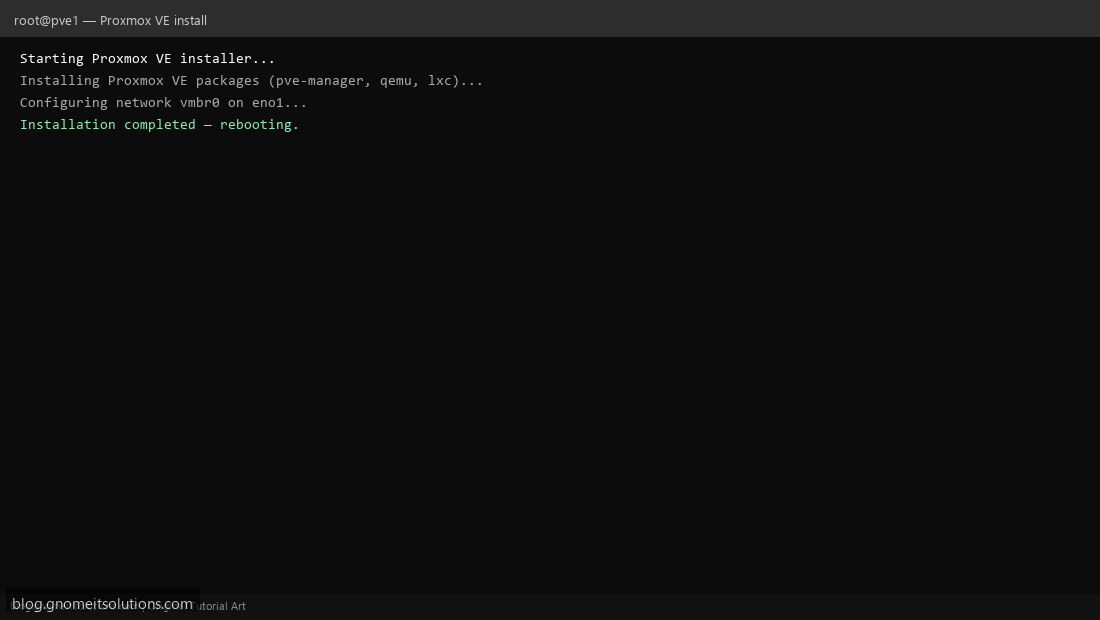

Step 1: Proxmox VE — Boot USB and Graphical Installer

Flash Proxmox VE 9.x ISO to USB. Boot server, select Install Proxmox VE (Graphical), choose disk (ext4 or ZFS), set root password, hostname, and static management IP on vmbr0.

Proxmox VE bare metal graphical installer boot USB — Step 1: Proxmox VE — Boot USB and Graphical Installer

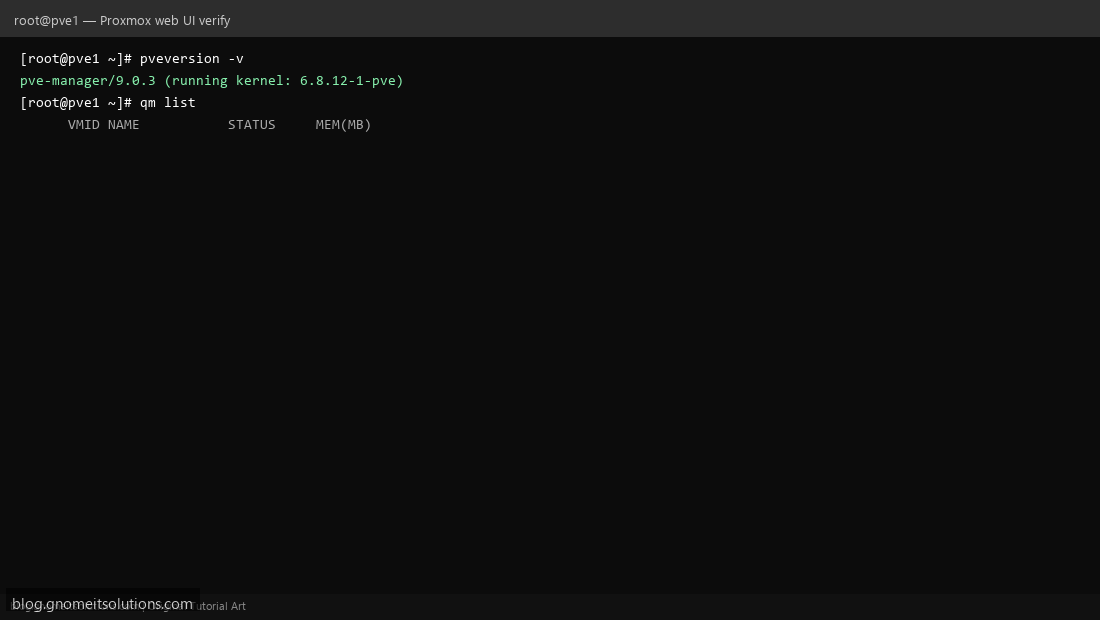

Step 2: Proxmox — First Web UI Login on Port 8006

Open https://192.168.1.50:8006, log in as root. Verify with pveversion -v and systemctl status pveproxy. Run apt update && apt full-upgrade -y after install.

Proxmox VE web interface login port 8006 pveversion — Step 2: Proxmox — First Web UI Login on Port 8006

Step 3: Create First VM in Proxmox

Datacenter → Create VM: set ID 100, attach ISO, 2 cores, 2 GB RAM, 32 GB disk on local-lvm, network vmbr0. CLI: qm create 100 --name ubuntu-web --memory 2048.

Create first virtual machine in Proxmox VE qm create — Step 3: Create First VM in Proxmox

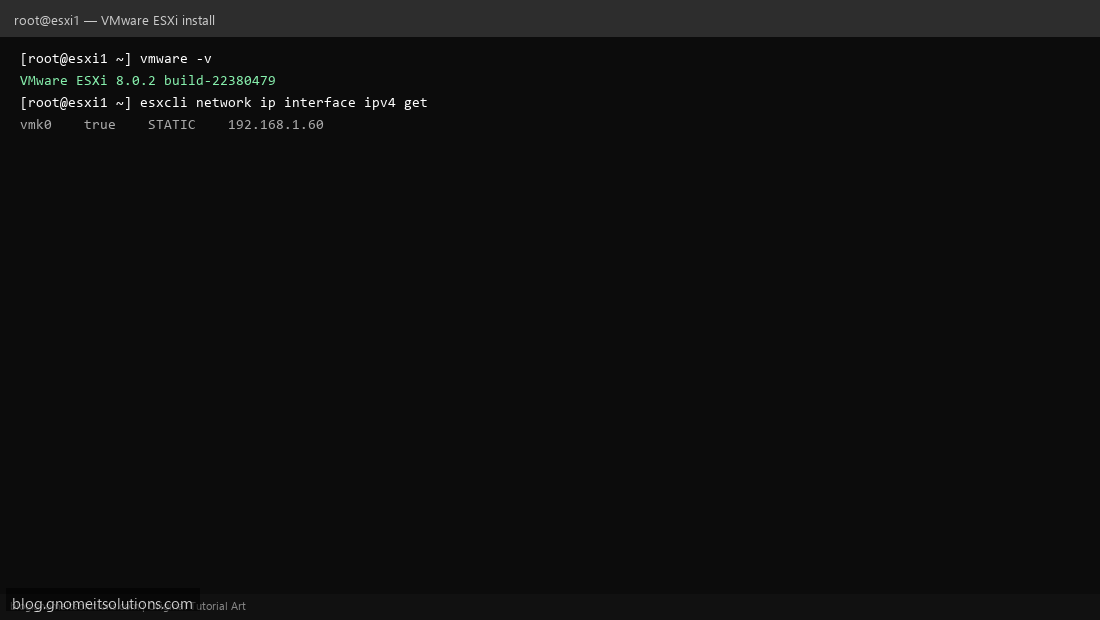

Step 4: VMware ESXi — ISO Install and DCUI Network

Boot ESXi 8.x installer, select local disk, set root password. After reboot use DCUI (F2) to configure static management IP, gateway, DNS, and hostname. Enable SSH if needed.

VMware ESXi bare metal installer DCUI network configuration — Step 4: VMware ESXi — ISO Install and DCUI Network

Step 5: ESXi Host Client and First VM

Browse to https://192.168.1.60/ui, log in as root. Check vmware -v and esxcli system version get. Create VM from Host Client: upload ISO, 2 vCPU, thin disk on VMFS datastore.

VMware ESXi Host Client web UI create first VM — Step 5: ESXi Host Client and First VM

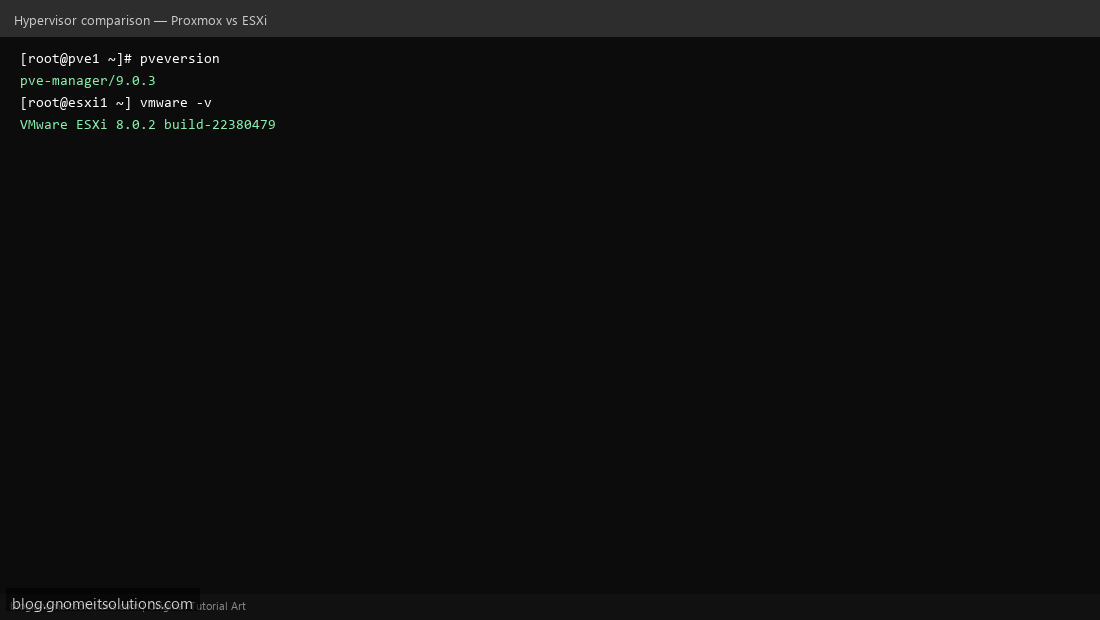

Step 6: Proxmox vs VMware — When to Choose Which

Proxmox: open-source, LXC containers, ZFS/Ceph, no per-socket license — ideal for homelab and MSPs. VMware: enterprise support, vMotion with vCenter, existing vSphere stacks.

Proxmox VE vs VMware ESXi comparison hypervisor — Step 6: Proxmox vs VMware — When to Choose Which

Proxmox verification

pveversion -v
pvesm status
qm list
pct list
journalctl -u pveproxy --since today | tail -20

ESXi verification

vmware -v
esxcli system version get
esxcli network ip interface ipv4 get
esxcli vm process list
grep -i error /var/log/hostd.log | tail -10

Comparison

Feature	Proxmox VE	VMware ESXi
License	Open source + optional sub	Commercial
Web UI	:8006	/ui Host Client
Containers	Native LXC	VMs only
Clustering	Built-in corosync	Needs vCenter
Backup	vzdump + PBS	Veeam / vSphere API
